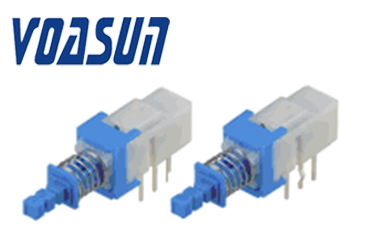

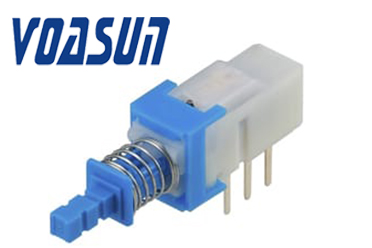

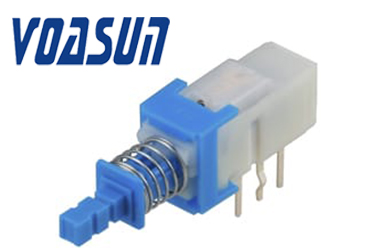

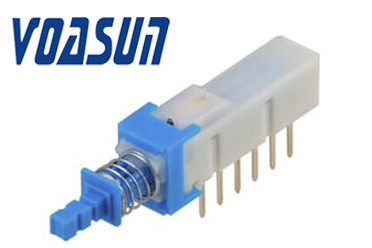

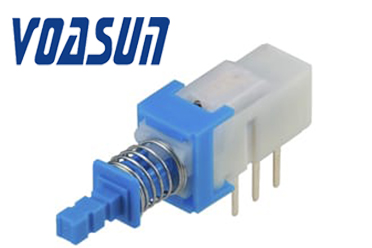

SPUN系列——ALPS按動開關
可對應多回路的大型臥式?操作方向：Horizontal ? 最大額定值：0.1A 30V DC (Standard) 1A 25V DC (Midium-current) ? 行程：2.5mm ? 電路數：2/4-pole。
產品詳情
我司是ALPS授權代理商，ALPS系列產品均有在售，需要了解價格、包裝數，交期以及產品資料請咨詢?cè)诰€客服！
|
產品編號 |
照片 |
切換時限 |
行程 |
全行程 |
額定 |
動作力 |
安裝方法 |
電路數 |
動作 |
端子形狀 |
尺寸(W×D×H) |
|
SPUN191400 |
 |
Non shorting |
2.5mm |
3.5mm |
Standard |
2±1N |
PC board |
2 |
Latching |
Straight |
24.0×10.0×13.0mm |
|
SPUN191600 |
 |
Non shorting |
2.5mm |
3.5mm |
Standard |
2±1N |
PC board |
2 |
Latching |
Snap-in |
24.0×10.0×13.0mm |
|
SPUN190900 |
 |
Non shorting |
2.5mm |
3.5mm |
Standard |
2±1N |
PC board |
2 |
Momentary |
Straight |
24.0×10.0×13.0mm |
|
SPUN191000 |
 |
Non shorting |
2.5mm |
3.5mm |
Standard |
2±1N |
PC board |
2 |
Momentary |
Snap-in |
24.0×10.0×13.0mm |
|
SPUN194700 |
 |
Non shorting |
2.5mm |
3.5mm |
Standard |
2.5±1N |
PC board |
4 |
Latching |
Straight |
24.0×10.0×13.0mm |
|
SPUN194900 |
 |
Non shorting |
2.5mm |
3.5mm |
Standard |
2.5±1N |
PC board |
4 |
Latching |
Snap-in |
24.0×10.0×13.0mm |
|
SPUN192600 |
 |
Non shorting |
2.5mm |
3.5mm |
Medium-current |
3±1.5N |
PC board |
2 |
Latching |
Straight |
24.0×10.0×13.0mm |
|
SPUN192800 |
 |
Non shorting |
2.5mm |
3.5mm |
Medium-current |
3±1.5N |
PC board |
2 |
Latching |
Snap-in |
24.0×10.0×13.0mm |
|
SPUN19C400 |
 |
Non shorting |
2.5mm |
3.5mm |
Medium-current |
4±2N |
PC board |
4 |
Latching |
Snap-in |
24.0×10.0×13.0mm |
SPUN系列用途：
Audio / TV:音響
