我司是ALPS授權代理商，ALPS系列產品均有在售，需要了解價格、包裝數，交期以及產品資料請咨詢在線客服！
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
操作壽命(5mA 5V DC) |
初期接觸電阻 |
按鈕顏色 |
按鈕 |
尺寸(W×D×H) |
|

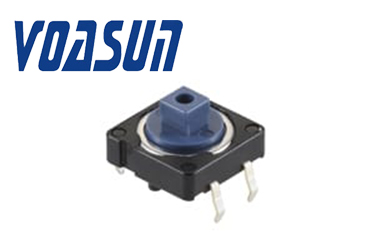

SKHCBJA010 |
 |
按入 |
0.74N |
Top push |
0.3mm |
500,000 cycles |
100mΩ max. |
Blue |
Joint stem |
12.0×12.0×7.3mm |
|

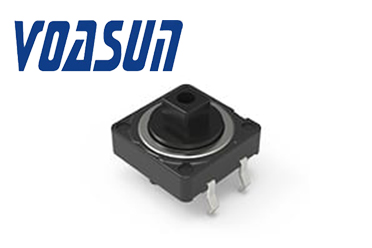

SKHCBEA010 |
 |
按入 |
1.27N |
Top push |
0.3mm |
1,000,000 cycles |
100mΩ max. |
Black |
Joint stem |
12.0×12.0×7.3mm |
|
SKHCBLA010 |
|
按入 |
1.27N |
Top push |
0.3mm |
3,000,000cycles |
100mΩ max. |
Black |
Joint stem |
12.0×12.0×7.3mm |
|
SKHCBGA010 |
 |
按入 |
2.55N |
Top push |
0.3mm |
500,000 cycles |
100mΩ max. |
Dark gray |
Joint stem |
12.0×12.0×7.3mm |
|

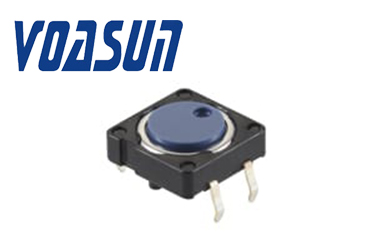

SKHCBKA010 |
 |
按入 |
0.74N |
Top push |
0.3mm |
500,000 cycles |
100mΩ max. |
Blue |
Flat stem |
12.0×12.0×4.3mm |
|

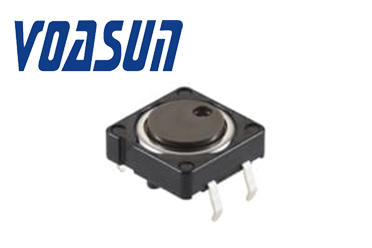

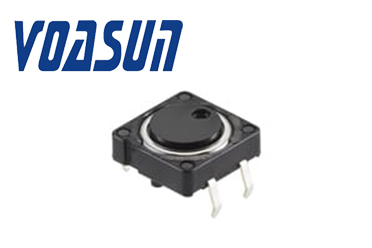

SKHCBFA010 |
 |
按入 |
1.27N |
Top push |
0.3mm |
1,000,000 cycles |
100mΩ max. |
Black |
Flat stem |
12.0×12.0×4.3mm |
|
SKHCBMA010 |
|
按入 |
1.27N |
Top push |
0.3mm |
3,000,000cycles |
100mΩ max. |
Black |
Flat stem |
12.0×12.0×4.3mm |
|
SKHCBHA010 |
 |
按入 |
2.55N |
Top push |
0.3mm |
500,000 cycles |
100mΩ max. |
Dark gray |
Flat stem |
12.0×12.0×4.3mm |
SKHC系列用途：
Energy / Industrial:工業設備
